Solving GM Trucks Intake Manifold Gasket Issues

Inside the problem

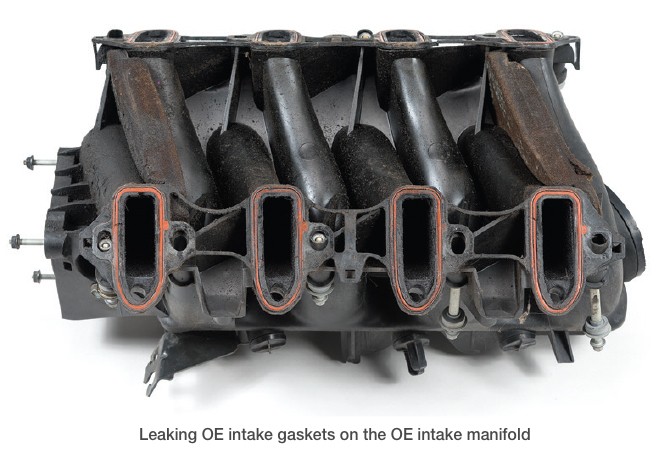

Leaking-OE-Intake-Manifold-Gaskets

GM trucks and vans from model years 1999-2015 with 4.8L, 5.3L or 6.2L engines can be subject to problems with the intake manifold gasket. These engines utilize a plastic carrier-style intake manifold gasket as original equipment. Over time, heat and corrosive ethanol-blended fuel mixtures can cause the carrier and sealing beads to degrade and crack.

Causes

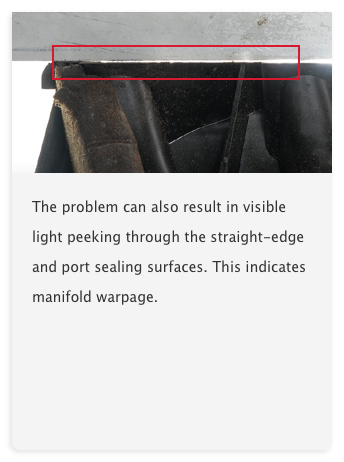

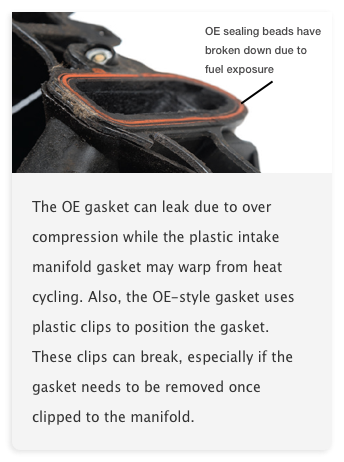

Fel-Pro_Solving_GM-Trucks-Intake-Manifold-Gasket-Issues_071620_Card-01
Fel-Pro_Solving_GM-Trucks-Intake-Manifold-Gasket-Issues_071620_Card-02

The Solution

Fel-Pro® PermaDryPlus® Intake Manifold Gasket MS 98016 T

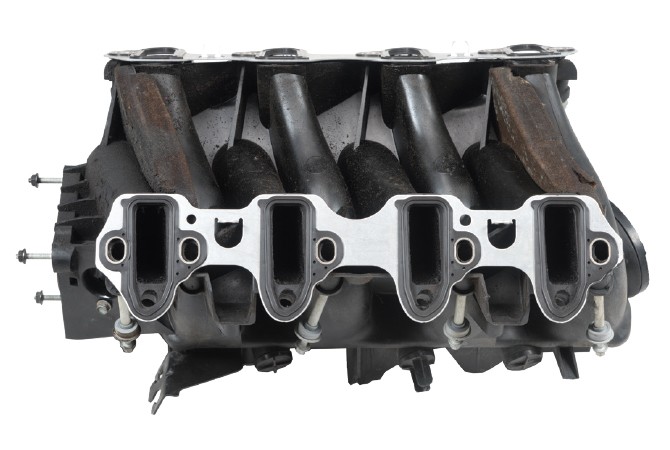

Intake-Manifold-With-Fel-Pro-PermaDryPlus-Intake-Manifold-Gasket

Fel-Pro PermaDryPlus gaskets are engineered and manufactured specifically for the repair environment to help seal imperfect sealing surfaces. PermaDryPlus gaskets feature exclusive application-specific technologies for a superior seal. You can count on PermaDryPlus intake manifold gasket set MS 98016 T to get the job done right.

Fel-Pro PermaDryPlus intake manifold gaskets utilize an aluminized steel carrier that won’t crack or break down. The metal carrier is unaffected by corrosive fuel mixtures and won’t become brittle from heat cycles like the OE plastic. Integrated torque limiters prevent over compression of the sealing beads and cracking of the carrier.

The molded rubber sealing beads are made of Fel-Pro’s proprietary molded rubber compound. This proprietary rubber resists all automotive fluids, preventing sealing bead breakdown. The superior material properties of these sealing beads eliminate leak paths and help maintain a proper seal, even if the manifold is slightly warped.

Fel-Pro-PermaDryPlus-Intake-Manifold-Gasket-with-logo

The metal carrier design of MS 98016 T also incorporates locating tabs that hold the gasket in place on the cylinder head by slipping over the head bolts. This is a more durable solution than the OE plastic clips.

Learn more about Fel-Pro quality gaskets that are specifically designed for the repair environment, find your car part, or find where to buy your auto part today.
